0℃~1300℃ Alarm REX-C100 Digital Intelligent Thermostat LED PID Temperature Controller Kits AC110V-240V

• MORE PROFESSIONAL: Adopts industrial-grade professional self-tuning PID technology, compared with the traditional PID control, it has a rapid temperature control, fast response, small overshoot and high precision.
• PRACTICAL: It's an useful temperature controller for controlling temperature intelligently and it can help the operator get good effect by simple
• SPECIAL: This multi-functional controller has special microprocessor switching power supply and SMT
• LONG SERVICE LIFE: Probe used stainless steel material shell and resin sealing treatment, waterproof and does not rust which has long service life.
• MULTIPLE USES: Widely applied to electric power, chemical industry, injection molding, food, incubator, oven and many other equipment.

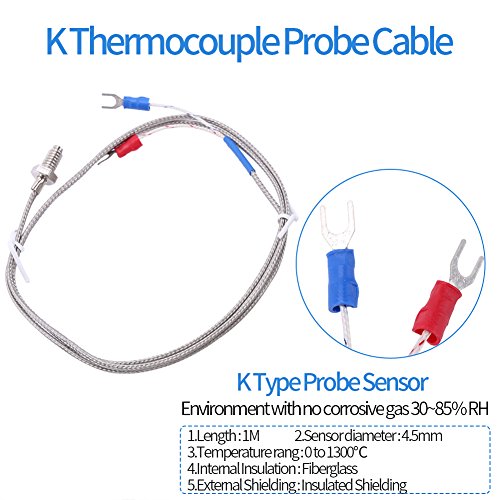

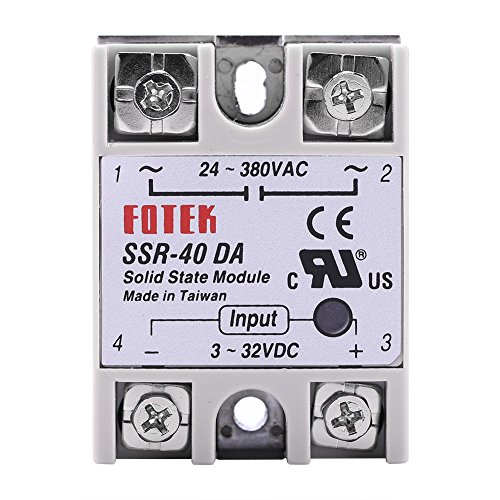

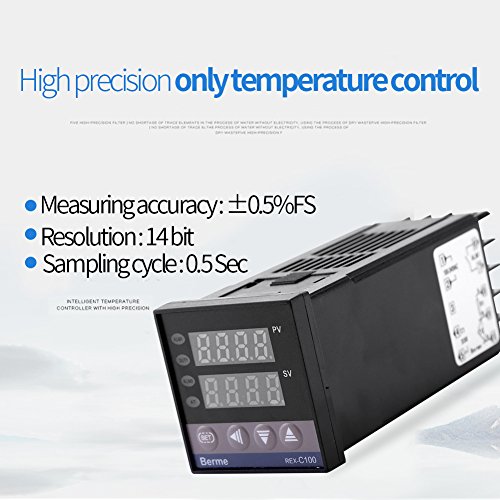

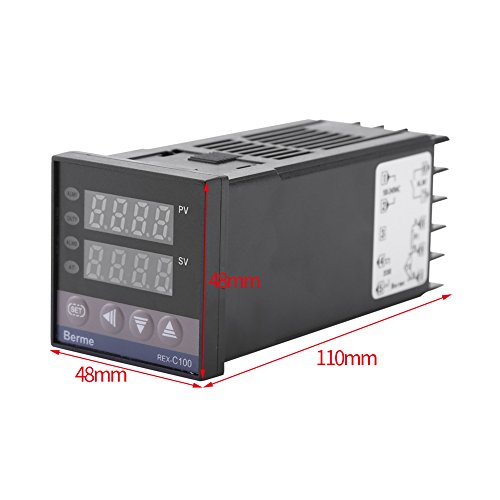

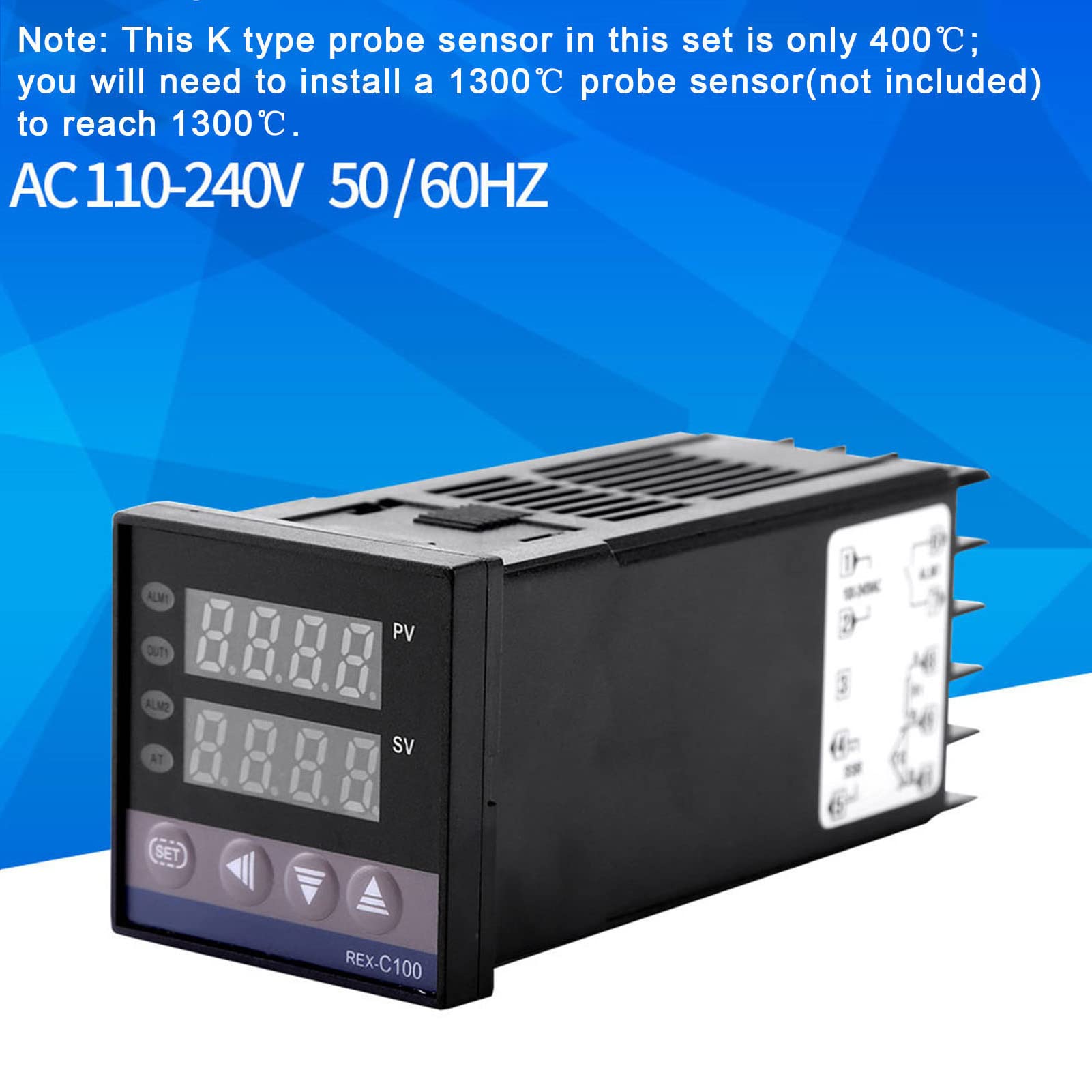

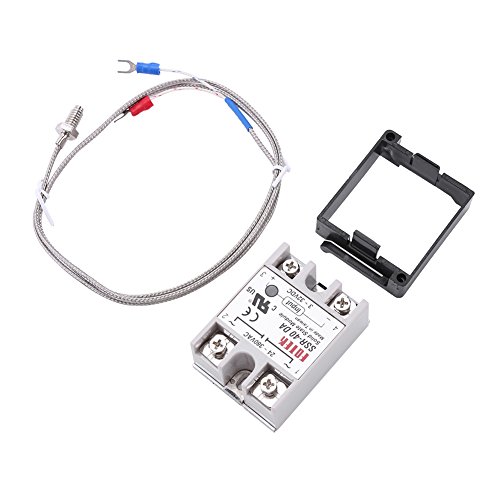

Specifications: Temperature Controller Measuring Accuracy: ±0.5%FS Cold-end Compensation Tolerance: ±2℃ (can be modified by software in 0~50℃) Resolution: 14 bit Sampling Cycle: 0.5 Sec Power: AC 110V-240V 50/60HZ Relay Output: Contact capacity 250V AC 3A (resistive load) Alarm Function Output: 2 ways Proportional Band (P): 0~full range (ON/OFF control when set to 0) Detecting Temperature Range: 0℃~1300℃(for Controller) Insulation Resistance: >50M ohm (500V DC) Insulation Resistance: 1500V AC/min Insulation Resistance: Power Consumption <10 VA Service Environment: 0℃~50℃ Size: 48*48*110mm / 1.89*1.89*4.33" K Thermocouple Probe Cable Length: 1M Sensor Diameter: 4.5mm Temperature Range: 0 to 400℃(for Probe) Internal Insulation: Fiberglass External Shielding: Insulated Shielding Max.40A SSR Output Voltage Range: Standard Type Output Current: 40A Input Voltage: DC 3V-32V Output Voltage: 24V-380V AC Note: This K type probe sensor in this set is only 400℃; you will need to install a 1300℃ probe sensor(not included) to reach 1300℃. Package Includes: 1 x REX-C100 PID Temperature Controller 1 x K Type Probe Sensor (400℃) 1 x Max.40A SSR
