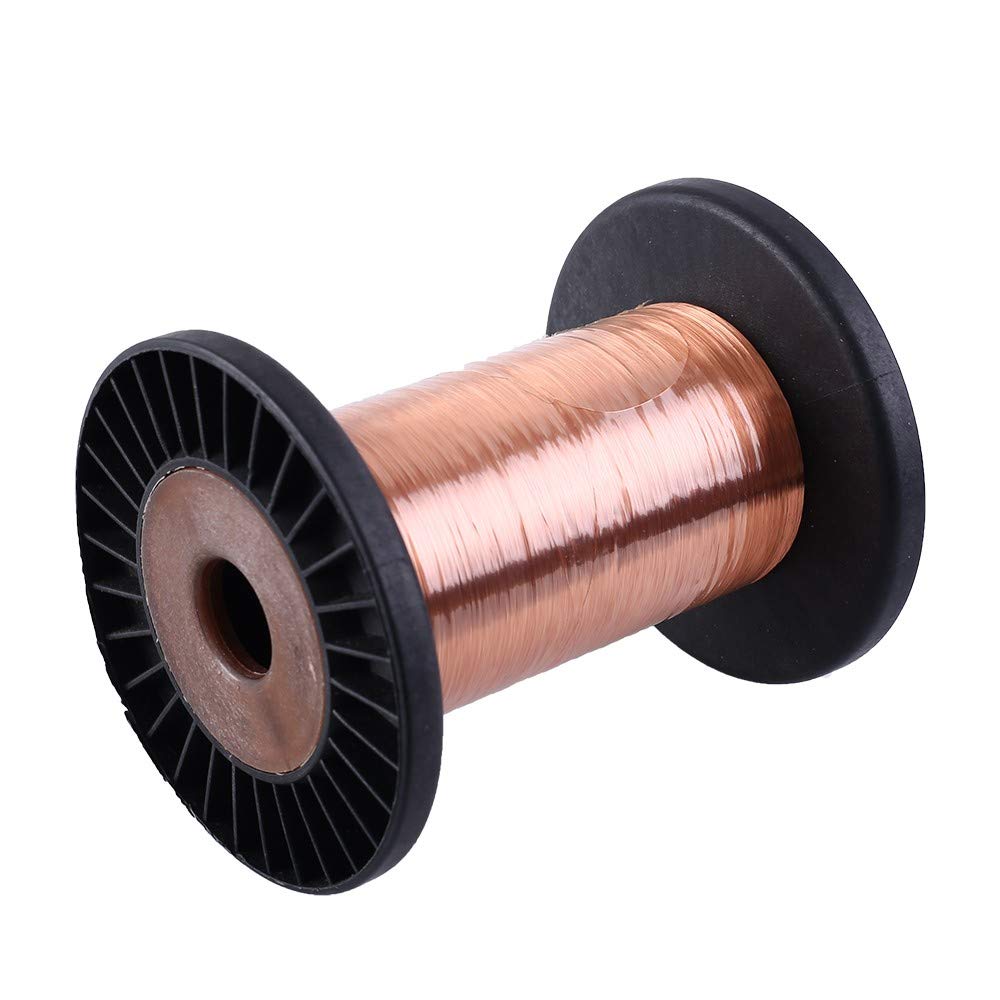

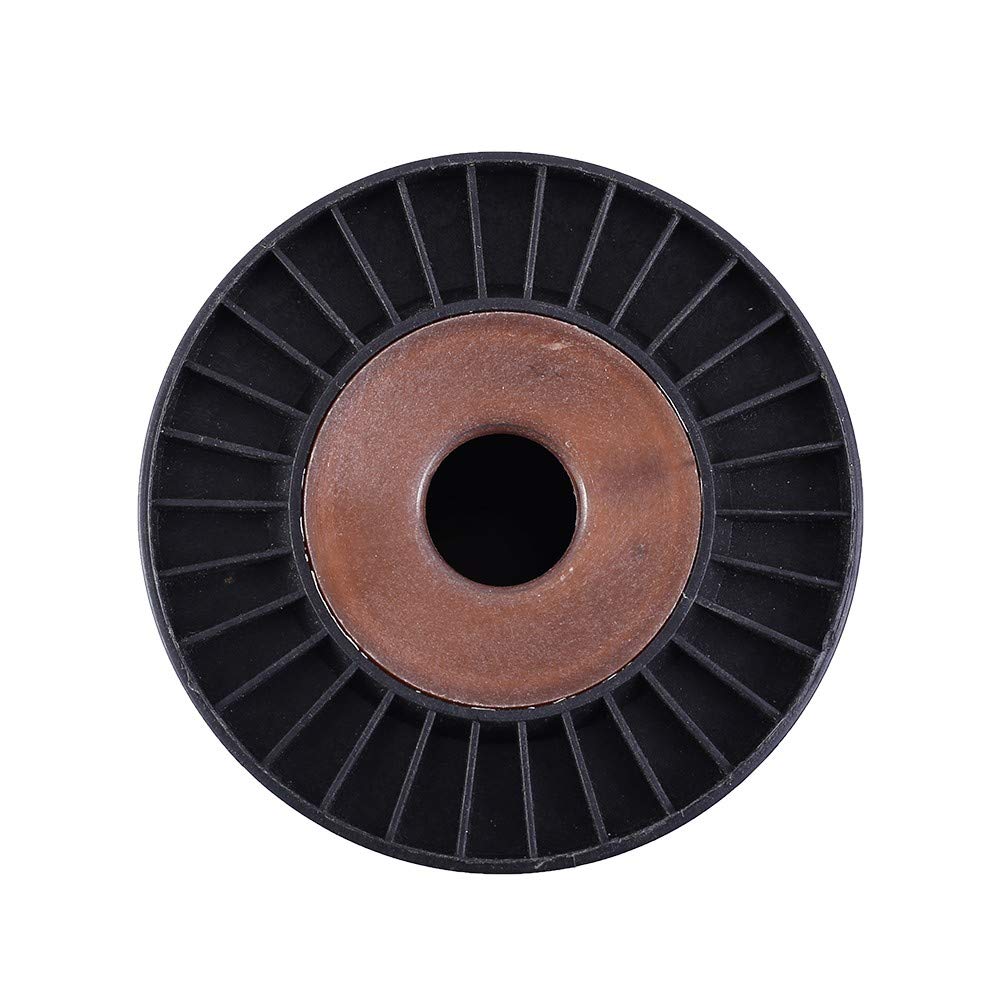

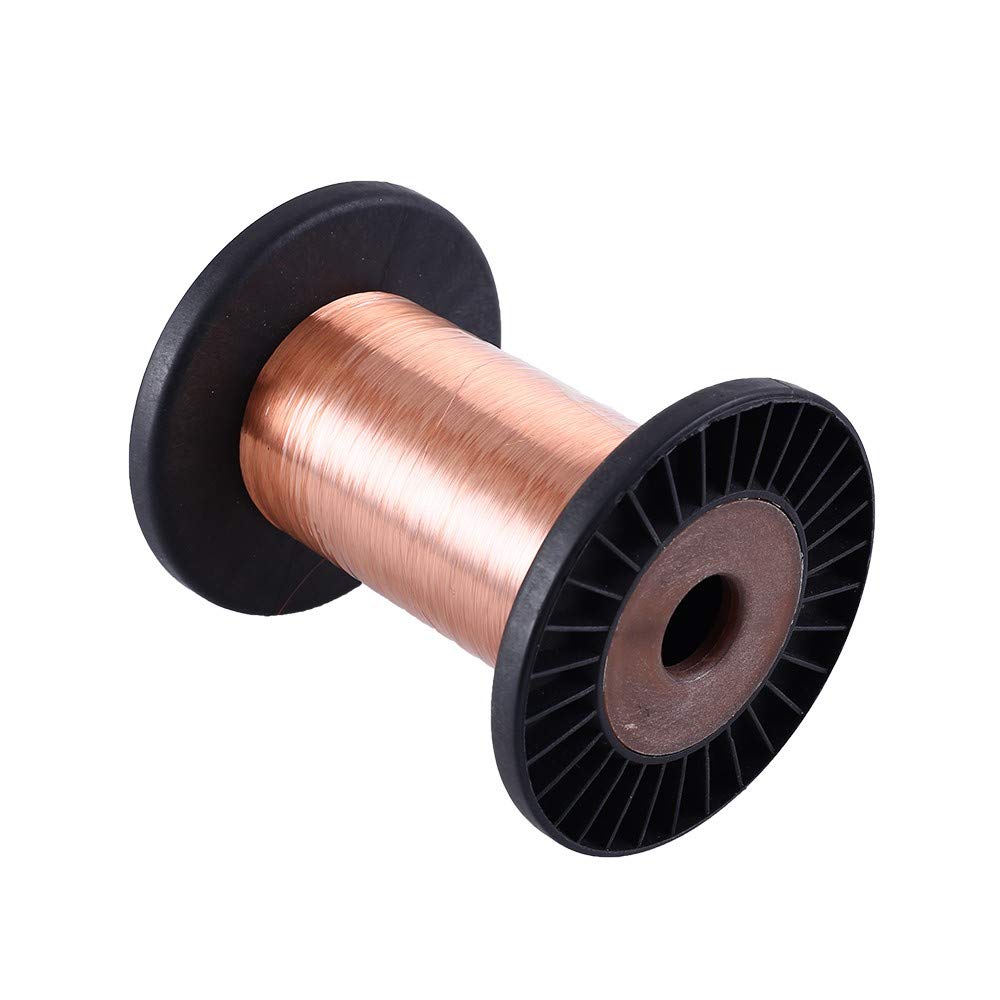

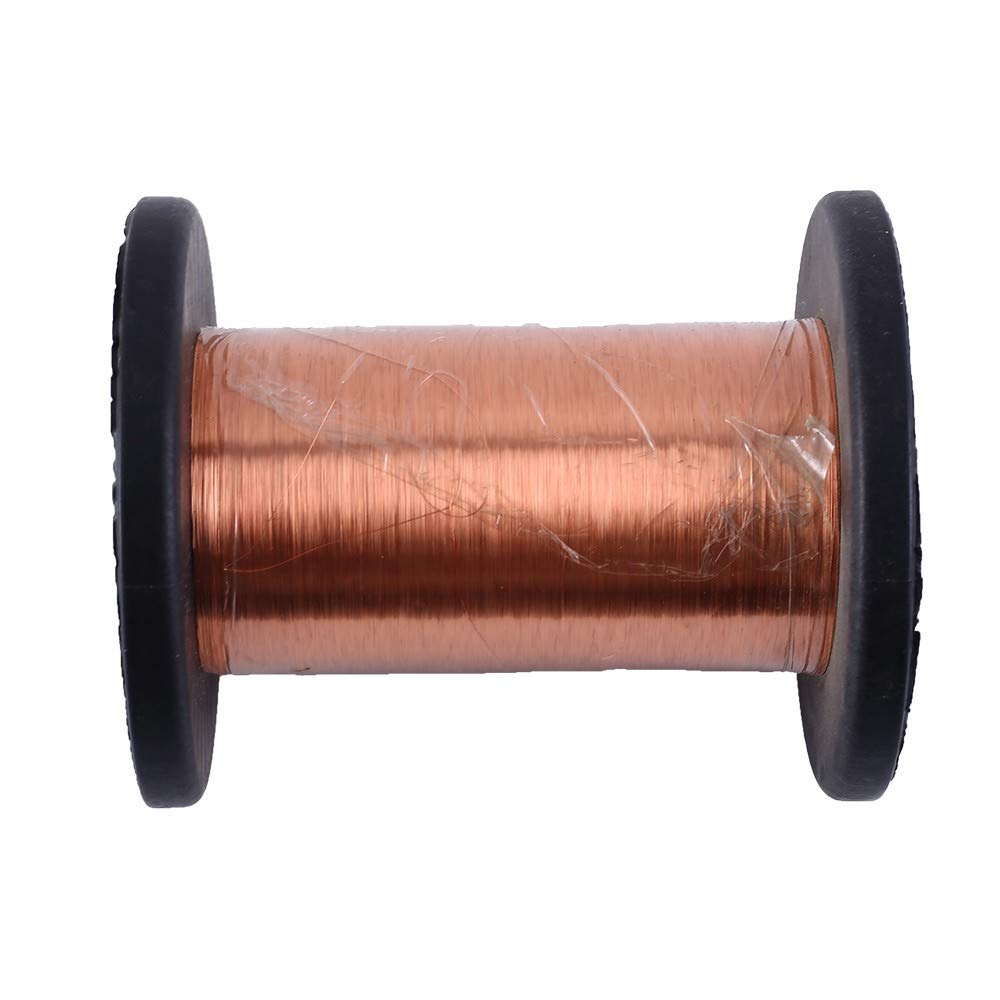

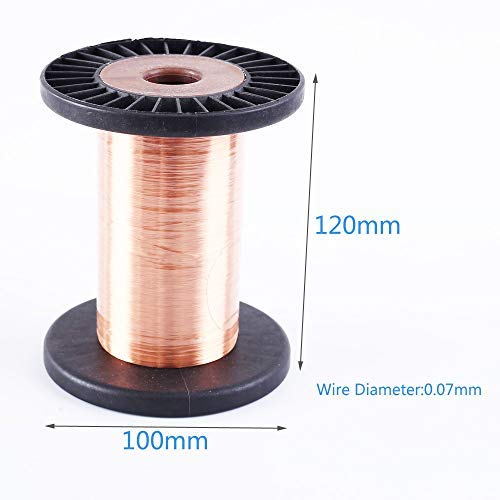

Enameled Copper Wire,Winding Wire 0.07mm Dia Enamelled Copper Lectromagnetic Wire for Connecting Soldering Purpose Inductance Coil(Axis Is Random Color)

• the Copper Wire Is Coated With Electrical Insulation to Prevent It From Shorting to Adjacent Wires Etc. The Insulation Can Be "enamel" - It Is Applied, like Paint, and It Can Be Scraped Off With A Knife to Expose the Copper For Electrical Connections.
• 【155 ℃ Temperature Resistance Level】& 【550V Withstand Voltage】.
• 【Stretching & Bending Without Pinholes】: Suitable for high-speed winding.
• 【No Peeling Film Required During Winding Process】: Effectively improves work efficiency.
• 【SHOP WITH CONFIDENCE】: To provide you with the highest quality service, If you have any question, please contact us.We will provide after-sales service .

Features: 1.It Is A Varnished Copper Wire With An Insulating Layer on the Surface. When Using, You Need to Scrape Off the Insulating Layer on the Surface With A Knife At the Joint 2. Temperature resistance level: 155 ℃.Good straight solderability: The insulating layer is polyurethane resin, which has good solderability between 360 ℃ to 400 ℃. 3. Good solvent resistance & abrasion resistance. 4. Stretching and bending without pinholes, suitable for high-speed winding. 5. No peeling film is required during the winding process, which effectively improves work efficiency. 6. Withstand voltage: 550V. 7. Widely used in the construction of transformers, coils, motors, solenoids, instruments, inductors, speakers, electromagnets and other applications that require tight coils of insulated wire. 8. Easy to use, Scrape off the insulating layer at both ends before use to connect，welding directly 9. Security: Magnet wire is a copper wire coated with a thin layer of insulating enamel. Copper pipes, insulation is made from polyester modified by a Polyamideimide coating, and protects the wound wire from short circuit. Specifications: Model: QA-1/155 High Voltage Resistance: 2000 V (Max) Copper Wire Diameter: 0.07 mm Copper Wire Weight: 100 g Copper Wire Length: Approximately 2700 m Working Temperature: -25℃ ~85℃ Working Humidity: 5% ~ 95% relative humidity Size: 100 x 100 x 120 mm Packaging List: 1 x Roll of Copper Wire SHOP WITH CONFIDENCE: To provide you with the highest quality service, If you have any question, please contact us.We will provide after-sales service .
